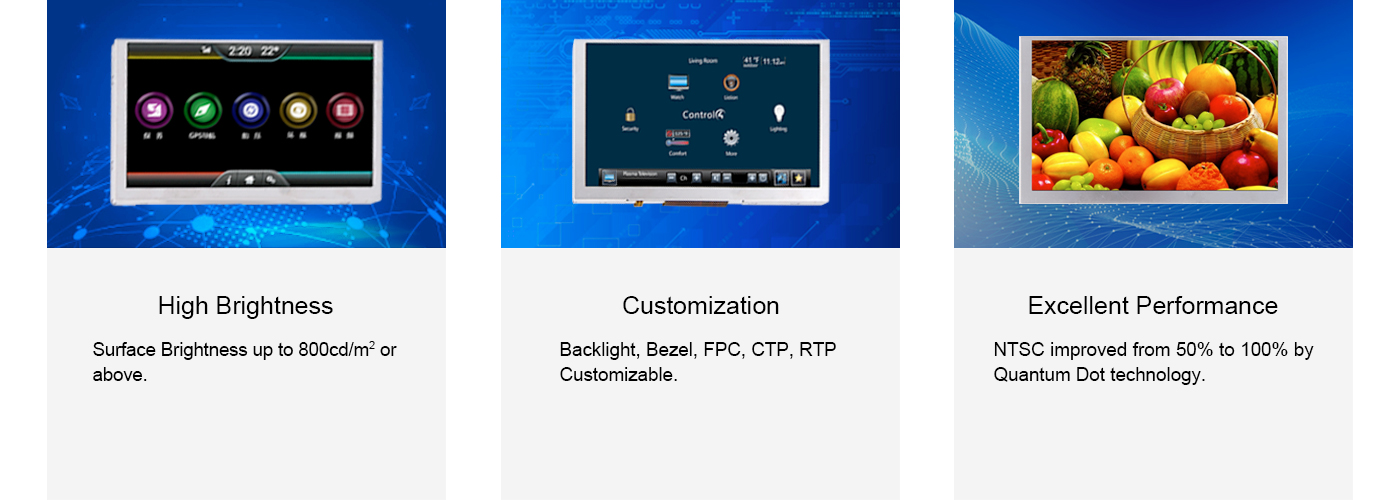

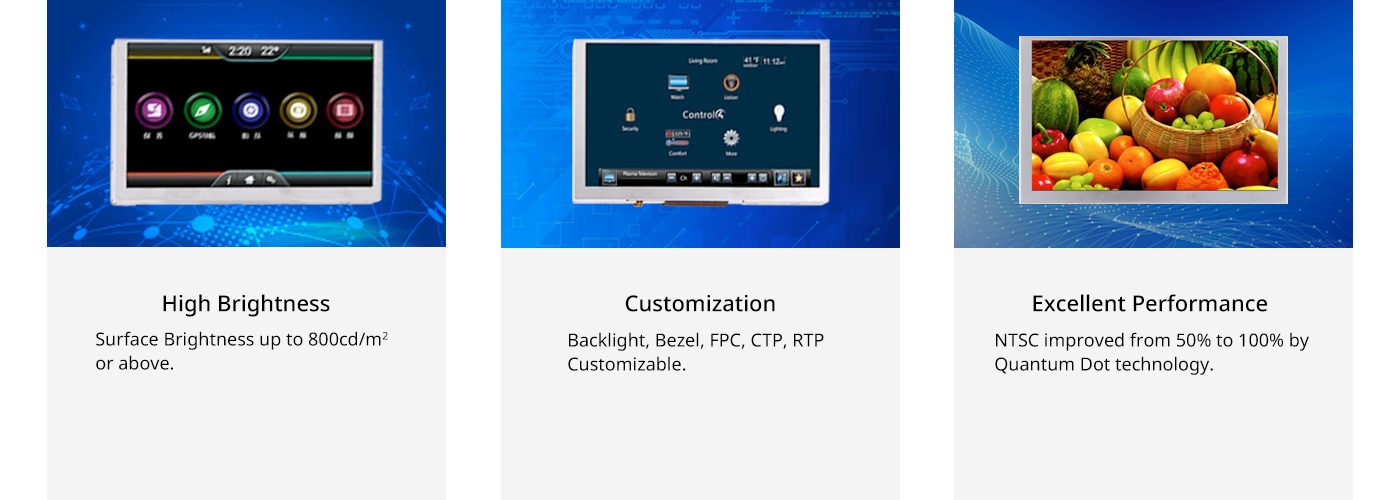

Product Feature
Standard List
|
Size |
Serial No. |
Resolution |
Outline (W*H*D/mm) |
A.A(W*H) (mm) |
Databus |
Interface |
View Direction |
|---|---|---|---|---|---|---|---|
| 1.77QQ | AVD-TT17QQ | 128*160 | 34.00*47.00 | 28.03*35.04 | 8 bit |
SPI/8080 |
6.00 |
| 2.4QV | AVD-TT24QV |
240*320 |
42.72*60.26 |
36.72*48.96 |
8/16/18bit |
SPI/RGB/8080 |
6.00 |
| 2.8QV | AVD-TT28QV |
240*320 |
50.00*69.20 |
43.20*57.60 |
8/16/18bit |
SPI/RGB/8080 |
6.00 |
| 3.5HV | AVD-TT35HV |
320*480 |
55.50*84.96 |
48.96*73.44 |
8/9/16/18bit |
SPI/RGB/8080 | 6.00 |
| 3.5QV | AVD-TT35QV |
320*240 |
76.90*63.90 |
70.08*52.56 |
24 bit |
RGB |
12:00 |
|
4.3WQ |
AVD-TT43WQ |
480*272 |
105.40*67.10 |
95.04*53.856 |
24 bit |
RGB |
12:00 |
| 5.0WV | AVD-TT50WV | 800*480 | 120.70*75.90 | 108.00*64.80 | 24 bit | RGB | 12:00 |
| 7.0WV | AVD-TT70WV | 800*480 | 164.90*100.00 | 153.84*85.63 |
24 bit |
RGB | 12:00 |
| 7.0WS | AVD-TT70WS | 1024*600 | 164.90*100.00 | 154.2144*85.92 |
24 bit |
RGB | 12:00 |
| 10.1WS | AVD-TT101WS | 1024*600 | 235.00*143.00 | 222.72*125.28 | 24 bit | RGB | 12:00 |
* Backlight brightness optional, general brightness 250~300cd/m2, medium brightness, 400~500cd/m2, high brightness 800~1000cd/m2;
* Support customization for interface, backlight brightness & life, bezel;
* Support customization for CTP & RTP;
* Support various bondings: Air bonding, OCA bonding or LOCA bonding;
* The list above only shows partial standard TN Type TFT modules. If the target product is not in this list, please contact us freely.
